Motor Mount

Discussion in 'California Custom Roadsters' started by Gary49, Jul 23, 2017.

  1. Gary49

    Gary49
    Expand Collapse
    Active Member

    Joined:
    Jun 1, 2017
    Messages:
    274
    Likes Received:
    156
    Gender:
    Male
    Occupation:
    Facilities Manager
    [​IMG][/URL][/IMG]
    Resinator,
    I fabricated the motor mount parts for a small block chevy. I have an LS motor and had Diane fax a drawing of that mount. All it has is a drawing of a flat plate with the LS bolt pattern. Do I bolt it to the tri-winged small block mount and then to the LS, or do I weld it to the part that bolts to the rubber donut?
    I tried to add a photo but I have a rough time with Photobucket.
    Thanks,
    Gary

  2. Gary49

    Gary49
    Expand Collapse
    Active Member

    Joined:
    Jun 1, 2017
    Messages:
    274
    Likes Received:
    156
    Gender:
    Male
    Occupation:
    Facilities Manager
  3. RESINATOR

    RESINATOR
    Expand Collapse
    Sponsor
    Forum Sponsor

    Joined:
    Sep 24, 2010
    Messages:
    365
    Likes Received:
    170
    Gender:
    Male
    Occupation:
    California Custom Roadsters
    You will be welding it in place of the three bolt plate. You can also just buy an adjustable adapter for the LS to the three bolt plate.
    The location will need to be set up per your firewall/steering box clearance, radiator and fan needs.
    This is the only photo I have on this computer

    Ulm (LS3) T Roadster Kit.jpg Ulm (LS3) T Roadster Kit (2).jpg

  4. Gary49

    Gary49
    Expand Collapse
    Active Member

    Joined:
    Jun 1, 2017
    Messages:
    274
    Likes Received:
    156
    Gender:
    Male
    Occupation:
    Facilities Manager
    Thank you Sir,
    I will be using your standard body so I feel confident locating the motor mounts and steering box where they are on the drawings. I will weld it in place of the 3 bolt plate. I priced the adapters and they are almost $100.00. Thanks again for your response.
    Gary

  5. RESINATOR

    RESINATOR
    Expand Collapse
    Sponsor
    Forum Sponsor

    Joined:
    Sep 24, 2010
    Messages:
    365
    Likes Received:
    170
    Gender:
    Male
    Occupation:
    California Custom Roadsters
    Just make sure that the steering box clears the exhaust and the block. The best thing for you to do is to tack weld the frame brackets and crossmember in place and mock things up. This way you can adjust things a bit if needed

  6. Gary49

    Gary49
    Expand Collapse
    Active Member

    Joined:
    Jun 1, 2017
    Messages:
    274
    Likes Received:
    156
    Gender:
    Male
    Occupation:
    Facilities Manager
    Thanks Resinator,
    That makes a lot of sense. I got the panhard bar today and I'm impressed with the quality of your work. It fit like a glove. I'll get the coil overs next and be done with the rearend. panhard.jpg

  7. RESINATOR

    RESINATOR
    Expand Collapse
    Sponsor
    Forum Sponsor

    Joined:
    Sep 24, 2010
    Messages:
    365
    Likes Received:
    170
    Gender:
    Male
    Occupation:
    California Custom Roadsters
    Looks great

  8. Gary49

    Gary49
    Expand Collapse
    Active Member

    Joined:
    Jun 1, 2017
    Messages:
    274
    Likes Received:
    156
    Gender:
    Male
    Occupation:
    Facilities Manager
    Thank you!! That means a lot coming from a pro like yourself. This is more fun than any project I ever started. I'm hoping to get my body in September, then it will really be fun.

  9. Spanky

    Spanky
    Expand Collapse
    Well-Known Member

    Joined:
    Jul 29, 2016
    Messages:
    1,916
    Likes Received:
    1,002
    Gender:
    Male
    Just wait 'til you drive it the first time!!!:thumbsup:

    Gary49 likes this.
  10. Bagman

    Bagman
    Expand Collapse
    Member

    Joined:
    Mar 28, 2016
    Messages:
    62
    Likes Received:
    17
    Gender:
    Male


    Here are a set of mounting plates i have used for a few of my LS projects. They are very easy to adjust

  11. Bagman

    Bagman
    Expand Collapse
    Member

    Joined:
    Mar 28, 2016
    Messages:
    62
    Likes Received:
    17
    Gender:
    Male
    Hmm. The link didnt show up

  12. Bagman

    Bagman
    Expand Collapse
    Member

    Joined:
    Mar 28, 2016
    Messages:
    62
    Likes Received:
    17
    Gender:
    Male

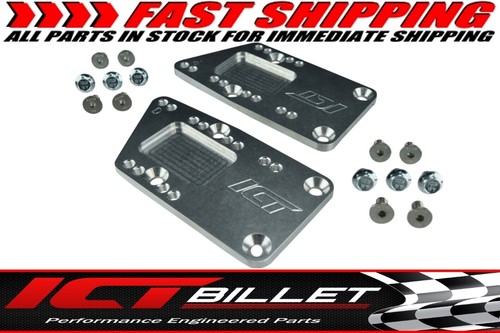

    Go to ebay and type in LS engine mounts. The ones i have used are from ICT Billet. 34 or 39 bucks and come with all hardware

    Gary49 likes this.
  13. Spanky

    Spanky
    Expand Collapse
    Well-Known Member

    Joined:
    Jul 29, 2016
    Messages:
    1,916
    Likes Received:
    1,002
    Gender:
    Male
    Somehow the Ebay links don't translate well . . .


    [​IMG] [​IMG]

    #13 Spanky, Jul 26, 2017
    Last edited: Jul 26, 2017
  14. Bagman

    Bagman
    Expand Collapse
    Member

    Joined:
    Mar 28, 2016
    Messages:
    62
    Likes Received:
    17
    Gender:
    Male
    Thanks Spanky. Those are the ones i have used

  15. rubicon

    rubicon
    Expand Collapse
    Supporting Member
    Supporting Member

    Joined:
    May 28, 2007
    Messages:
    811
    Likes Received:
    232
    Gender:
    Male
    Looking good so far. Keep the pictures coming. We enjoy watching new builds.

  16. Gary49

    Gary49
    Expand Collapse
    Active Member

    Joined:
    Jun 1, 2017
    Messages:
    274
    Likes Received:
    156
    Gender:
    Male
    Occupation:
    Facilities Manager
    Thanks, I think I will start a new thread to do that. I don't want to tie up CCR's section with my stuff.

    409T likes this.
  17. RESINATOR

    RESINATOR
    Expand Collapse
    Sponsor
    Forum Sponsor

    Joined:
    Sep 24, 2010
    Messages:
    365
    Likes Received:
    170
    Gender:
    Male
    Occupation:
    California Custom Roadsters
    Here's a few more photos of the LS mounted in the CCR T-Bucket frame, this one had a column shift so the box mount and motor/trans went forward a few inches

    (LS3) T Roadster Kit szd (40).jpg (LS3) T Roadster Kit szd (41).jpg (LS3) T Roadster Kit szd (50).jpg (LS3) T Roadster Kit szd (56).jpg (LS3) T Roadster Kit szd(106).jpg

    Gary49 likes this.
  18. old round fart

    old round fart
    Expand Collapse
    Well-Known Member

    Joined:
    Feb 5, 2008
    Messages:
    2,698
    Likes Received:
    707
    Occupation:
    Retired
    That is a clean install. You have a brute in the shop to put that 90 degree in that 3/8 plate for the motor mount! Lol

  19. Gary49

    Gary49
    Expand Collapse
    Active Member

    Joined:
    Jun 1, 2017
    Messages:
    274
    Likes Received:
    156
    Gender:
    Male
    Occupation:
    Facilities Manager
  20. Gary49

    Gary49
    Expand Collapse
    Active Member

    Joined:
    Jun 1, 2017
    Messages:
    274
    Likes Received:
    156
    Gender:
    Male
    Occupation:
    Facilities Manager
    On page 4 of set 5 in the AA view, is the mount welded to the frame 1/4" lower at the rear? I see 1 1/4" and 1 1/2" on the drawing and wasn't sure what it meant.
    Thanks again,
    Gary
